When you are cutting threads on a CNC lathe, a part often has to come off the machine before the job is finished for a dimension check, a heat treatment step, or a secondary operation, and that means re-chucking it. This is where machinists run into a real headache: the thread path lands in the wrong place. The re-cut toolpath does not line up with the existing thread groove, the insert cuts straight through the thread crest, and you end up with a ruined thread, a scrapped part, or worse, a crash.
How do you get back to the original thread path quickly and accurately on a Focus CNC lathe, and fix it right the first time? This article walks through a safe, standard procedure built on real-world machining experience.
Why the Thread Path Shifts after Re-chucking
1. Phase Offset
When you take a part off the chuck and put it back on, no matter how careful you are, the rotational angle (phase) of the part almost never lands in exactly the same spot as it did the first time.
2. The Start Position No Longer Matches
A standard threading cycle such as G76 relies on the spindle encoder's one-per-revolution signal to trigger the Z-axis feed. Once the part has been rotated by some unknown angle and re-chucked, the original program's Z-axis start position loses its synchronization with the actual physical thread on the part.
The core solution: Do not try to guess or measure how many degrees the part rotated. Instead, physically re-align the tool with the thread, and redefine the relationship between the Z-axis and the spindle phase from there.
Two Standard Methods for Thread Repair
You may hear about using the Q parameter in G76 to correct the angle, but in practice this is extremely difficult to measure precisely and is easy to get wrong a second time. Here are the two methods that are widely used and trusted across the industry:
Method A: Z-Axis Offset Method (the Most Common, Works on Any Standard Two-Axis Lathe)
This is the most traditional and intuitive method, and you do not have to change any G76 parameters.
1. Lock the Spindle
Execute M19 in MDI mode. This electrically locks the spindle at a fixed angle, so it cannot drift when you are aligning the tool.
2. Align the Tool by Hand

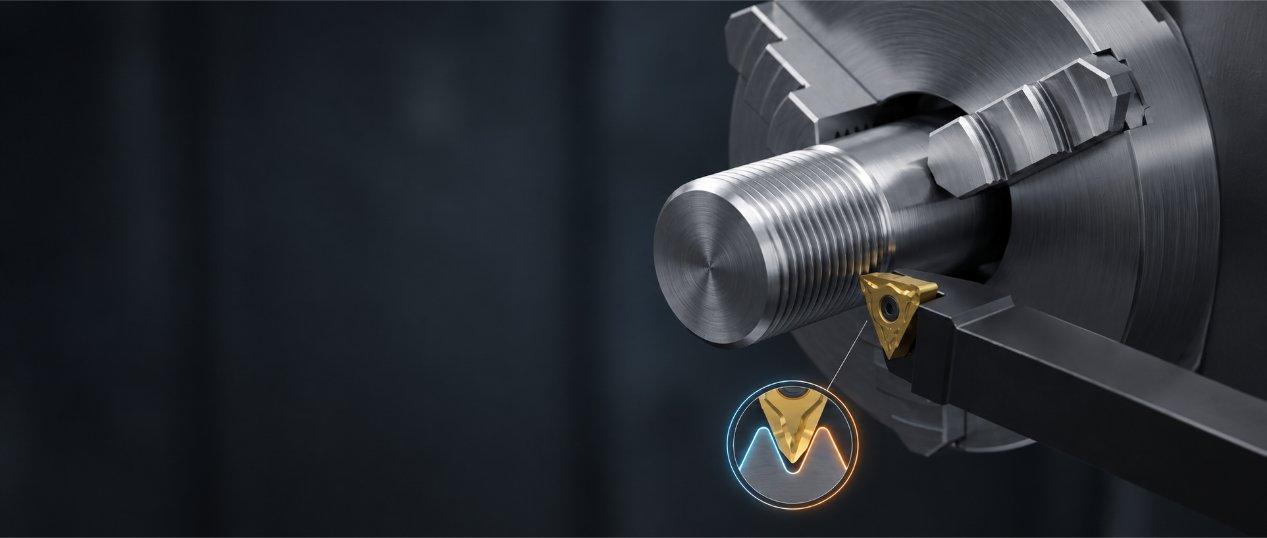

Switch to handwheel mode (MPG) and move the threading tool close to the part. Slowly turn the X-axis and Z-axis handwheels until the tool tip settles exactly into the center of the first complete thread valley. A magnifying glass or a feeler gauge can help you confirm the gap is even on both sides of the tip.
3. Calculate the Offset
Check the Z-axis machine coordinate currently shown on the screen, and compare it to what the original program expects the Z-axis coordinate to be at this position. Calculate the difference (delta Z), and enter that value into the Z-axis offset of the work coordinate system (such as G54).
4. Run a Dry Test, then Cut
Retract the X-axis to a safe height. Turn on Single Block, and temporarily increase G76’s depth of cut (the X value), so the tool stays away from the part. Watch whether the dry-run toolpath lines up perfectly with the existing thread valley. Once you confirm it lines up, restore the original X value and run the actual repair cut.
Method B: Conversational Thread Repair Function (for Machines with Manual Guide i)
If your Focus CNC machine has a Fanuc control paired with Manual Guide i, the process becomes much simpler:
- Start the built-in Thread Repair function.
- The spindle runs at a slow, constant speed, and you use the handwheel to move the tool into the moving thread valley.
- Once the tool is aligned, press the teach or memory key on the control. The system instantly captures the spindle encoder pulse and the Z-axis position at that moment, and recalculates the start position automatically, removing the risk of manual calculation and offset entry.
Practical Tips from the Machine Shop
1. The Marker Ink Test
After you confirm alignment with the dry run, but before you run the real cut, color the existing thread with a dark permanent marker. Set the depth of the first cut extremely shallow, such as 0.01 mm, and cut it. Then check where the ink was scraped off. If the ink comes off evenly at the bottom of the valley, your alignment is correct. If the ink only comes off on one side of the thread flank, there is still a small offset in your Z-axis correction, and you need to fine-tune it again.
2. Mark the Part before You Unload It
If you already know a part will need to be unloaded and re-chucked for a thread repair later, mark some reference lines across the part's surface and the chuck jaws before you open the chuck. When you re-chuck the part, line up the marks as closely as you can. This keeps the phase offset to a minimum and saves you a lot of time trying to find the thread path.
Supporting Threading and Thread Repair on Focus CNC Lathes
Successful thread repair depends not only on finding the original thread path, but also on understanding how the machine's spindle, control, and threading functions work together. Focus CNC offers CNC lathes for a range of turning applications, including machines equipped with FANUC control options that can support threading operations and related programming functions.
When selecting a CNC lathe for parts that involve frequent threading, consider the thread specifications, workpiece size, spindle requirements, and control functions needed for your production process. The appropriate machine and control configuration can make both regular thread cutting and future setup adjustments easier to manage.
