FNL-220Y/ LY/ LSY/ LS/ LSMC

CNC Turn Mill Machine
https://www.focus-cnc.com/web/image/product.template/16/image_1920?unique=aacd75f

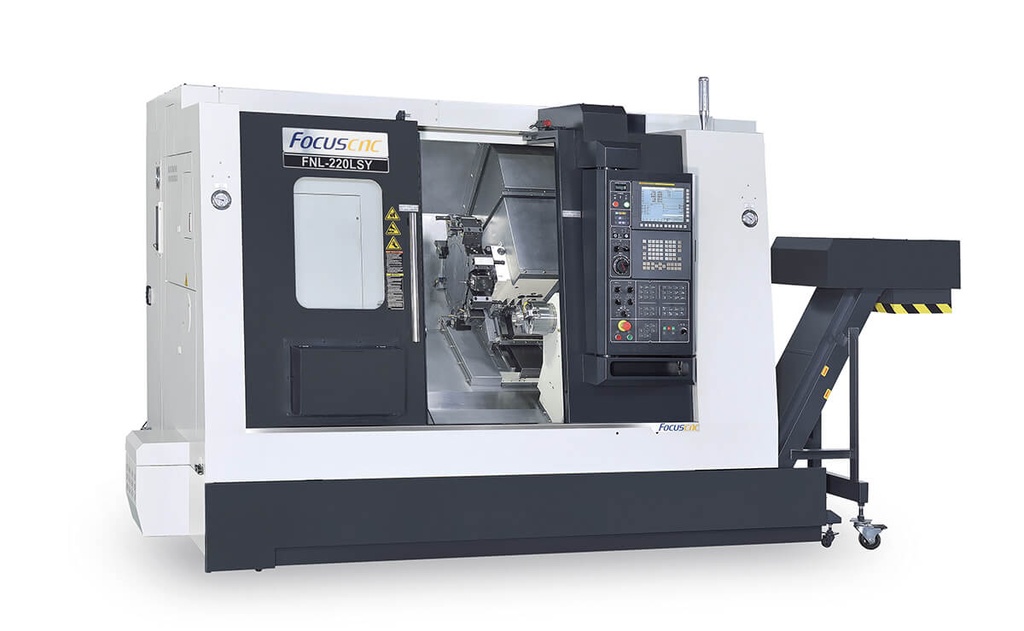

FNL-220 series CNC Turn Mill Center Machine is designed with dual 30-degree slant bed and roller linear ways structure that delivers low-friction, high-rigidity and high-loading capacity, it reduces vibration and stick-slip issues efficiently.

Equipped with Bosch Rexroth roller type guideway provides both of high rigidity similar to box way machine and rapid motion to ensure excellent accuracy and cutting surface during high-speed processing.

Equipped with powerful 12/16 stations BMT45 servo turret for heavy cutting. Its superior rigid structure satisfies strict cutting condition and increases efficiency. All tool stations are live with maximum tooling speed 6000 RPM.

    This combination does not exist.

    Specifications

    FNL-220Y
    FNL-220LY
    FNL-220LSY
    FNL-220LS FNL-220LSMC
    Capability
    Swing over bed mm 620
    620
    620
    620 620
    Max. cutting diameter mm 270
    270
    270
    330 330
    Max. cutting length mm 300
    510
    510
    510 510
    Max. bar material diameter (main) mm
    52(65)
    52(65)
    52(65)
    52(65) 52(65)
    Max. bar material diameter (sub)
    mm
    45
    45
    45
    45
    45
    Spindle
    Main spindle speed
    rpm
    4500
    4500
    4500
    4500
    4500
    Main spindle nose
    ASA
    A2-6
    A2-6
    A2-6
    A2-6 A2-6
    Main spindel chuck size
    inch 8
    8
    8
    8 8
    Main spindle motor
    kW
    11/15
    11/15
    11/15
    11/15 11/15
    Sub spindle speed
    rpm
    --6000
    6000
    6000
    Sub spindle nose
    ASA
    --A2-5
    A2-5
    A2-5
    Sub spindel chuck size
    inch
    --6
    6
    6
    Sub spindle motor
    kW
    --5.5/7.5
    5.5/7.5
    5.5/7.5
    Turret
    Number of tools
    12(16)
    12(16)
    12(16)
    12(16) 12(16)
    Turning tool size mm20x20
    20x20
    20x20
    20x20 20x20
    Boring tool size mm 32
    32
    32
    32 32
    Travel
    X axis travel mm 200
    200
    200
    220 220
    Z axis travel
    mm 350
    560
    560
    560 560
    Y axis travel
    mm
    110 (±55)
    110 (±55)
    110 (±55)
    --
