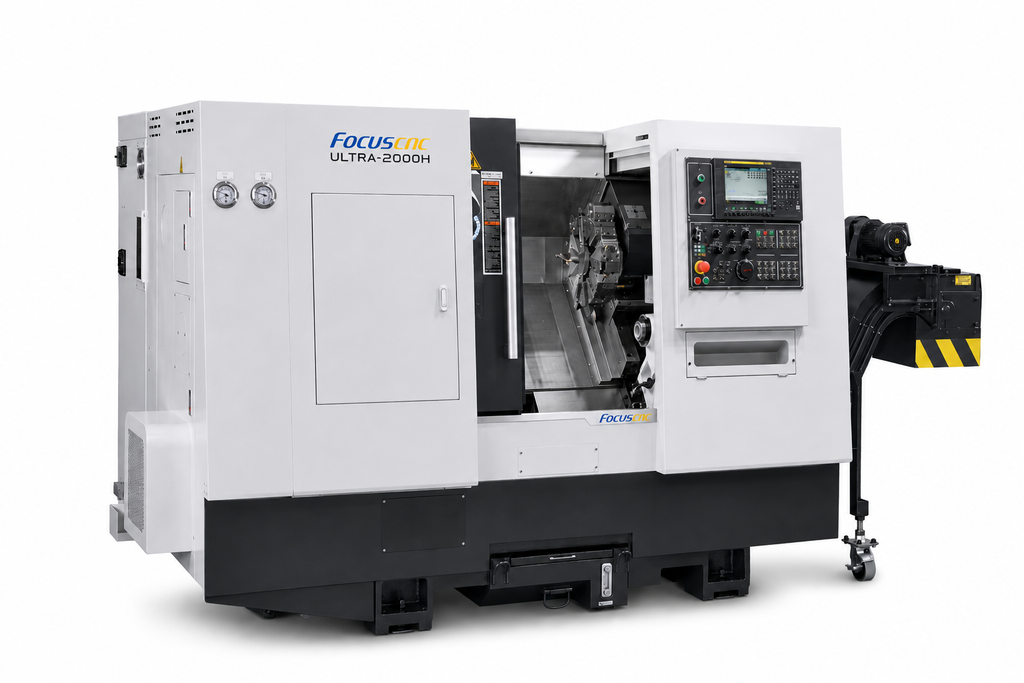

Ultra-2000H
Box Way CNC Lathe
High-precision hydrostatic spindle. Face runout accuracy of less than 0.8µ, with rigidity superior to conventional ball-bearing spindles, making it suitable for precision machining of hard and brittle materials.
Low spindle thermal growth for long-term accuracy. Minimal spindle temperature variation reduces thermal deformation, ensuring stable machining accuracy and reliability during long-duration operation.
Machine chip-breaking function. Integrated with the CNC controller’s oscillation cutting function to achieve stable chip breaking during turning operations and effectively prevent chip entanglement around the workpiece.
Low-carbon energy-saving module. Reduces hydraulic power consumption by more than 15%, supporting low-carbon manufacturing processes and compliance with green supply chain standards.
| Specifications |
Ultra-2000H |
|
| Capability
|
||
| Swing over bed | mm | 500 |
| Max. cutting diameter | mm | 300 |
| Max. cutting length | mm | 440 |
| Max. bar material diameter | mm | 52 |
| Spindle | ||
| Spindel speed | rpm | 3500 |
| Spindle nose |
ASA |
A2-6 |
| Chuck size | inch | 8 |
| Spindle motor | kW |
14.1/19.3 |
| Turret | ||
| Number of tools |
|
10 |
| Turning tool size | mm | 25x25 |
| Boring tool size | mm | 40 |
| Travel | ||
| X axis travel | mm | 210 |
|
Z axis travel
|
mm | 450 |
