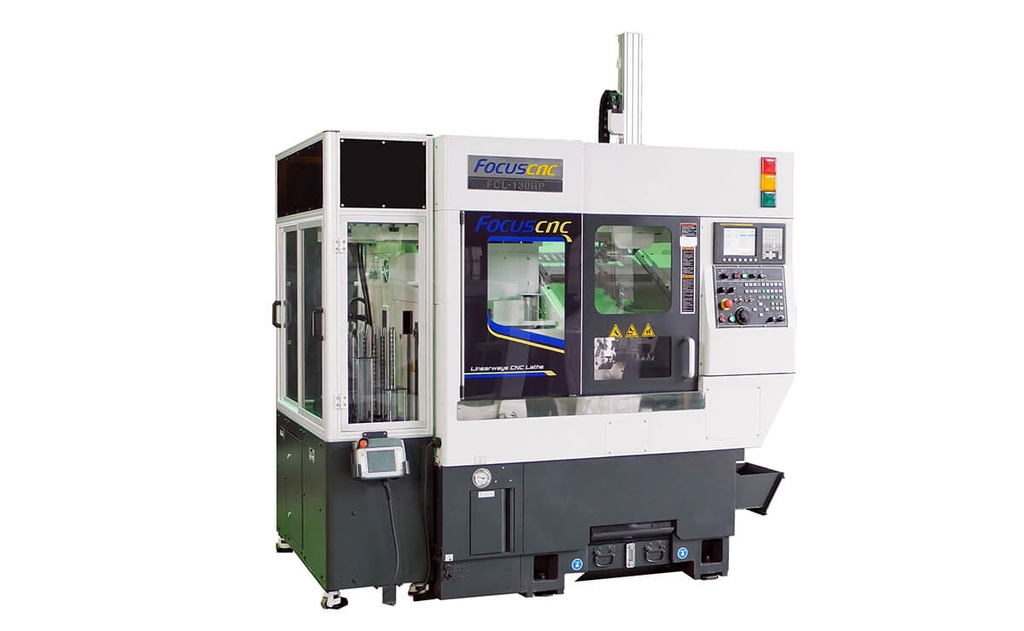

FCL-130/ A/ R/ RP
Linear Way CNC Lathe
The 30-degree slant bed provides high stiffness, long-term stability and excellent chip removal capability. Compact design makes the machine length shorter and the footprint smaller.
Equipped with superior rigidity roller type linear guideways that delivers high-precision and high-speed movement.
The loading of raw workpiece and unloading of finished workpiece can be processed at the same time with parallel type gripper. It shortens the production time.
| Specifications |
FCL-130A | FCL-130 | FCL-130R | FCL-130RP | |
| Capability
|
|||||
| Swing over bed | mm | 443 | 443 | 443 | 443 |
| Max. cutting diameter | mm | - | 236 | 236 | 236 |
| Max. cutting length | mm | 250 | 233 | 233 | 233 |
| Max. bar material diameter | mm |
45 | 45 | 45 | 45 |
| Spindle | |||||
| Spindel speed | rpm | 6000 | 6000 | 6000 | 6000 |
| Spindle nose |
ASA |
A2-5 | A2-5 | A2-5 | A2-5 |
| Chuck size | inch | 6 | 6 | 6 | 6 |
| Spindle motor | kW |
3.7/5.5 | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 |
| Turret | |||||
| Number of tools |
|
4 |
8 | 8 | 8 |
| Turning tool size | mm | 20x20 | 20x20 | 20x20 | 20x20 |
| Boring tool size | mm | 25 | 32 | 32 | 32 |
| Travel | |||||
| X axis travel | mm | 250 | 138 | 138 | 138 |
|
Z axis travel
|
mm | 250 | 250 | 250 | 250 |
