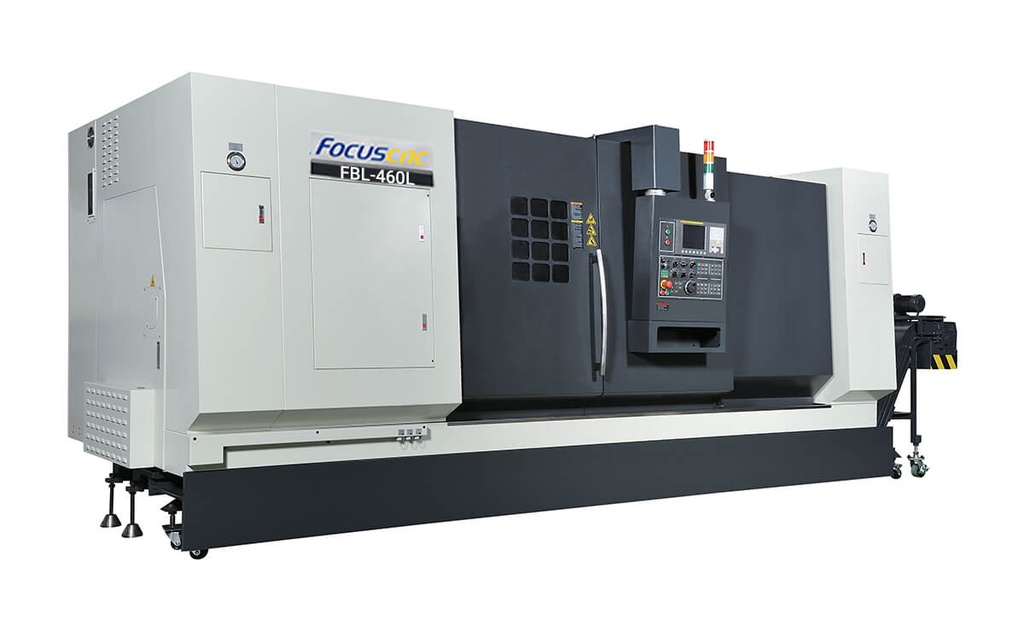

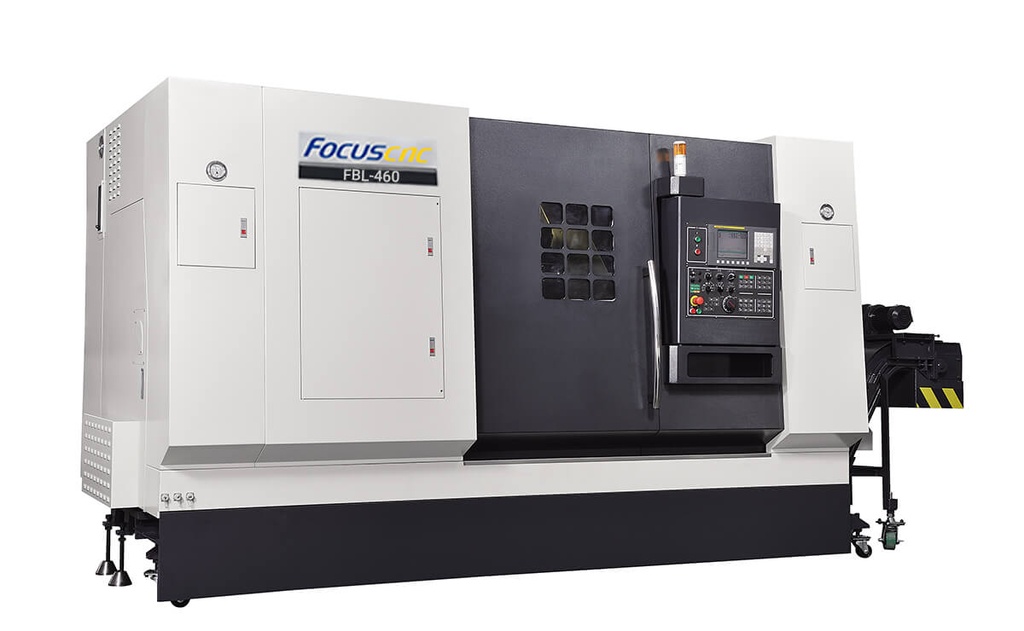

FBL-460/ L/ MC / LMC

Box Way CNC Lathe
https://www.focus-cnc.com/web/image/product.template/21/image_1920?unique=3e485ce

The rigid tailstock brings high stability and high shock damping. You can program the tailstock movement driven by Z axis saddle. Optional rotary quill is available to upgrade the loading capacity.

The spindle is equipped with a 2-speed gearbox. It outputs full torque when the spindle speed is under 250RPM to have excellent performance for heavy cutting.

The one-piece 45 degree slant bed features low center of gravity, smooth chip removal and stable processing accuracy.

    This combination does not exist.

    Specifications

    FBL-460
    FBL-460L
    FBL-460MC
    FBL-460LMC
    Capability
    Swing over bed mm 840
    840
    840
    840
    Max. cutting diameter mm 650
    650
    610
    610
    Max. cutting length mm 694
    1974
    665
    1939
    Max. bar material diameter mm 140
    140
    140
    140
    Spindle
    Spindel speed
    rpm
    1400
    1400
    1400
    1400
    Spindle nose ASA
    A2-15
    A2-15
    A2-15
    A2-15
    Chuck size inch 15
    15
    15
    15
    Spindle motor kW
    22/26(30/37)
    22/26(30/37)
    22/26(30/37)
    22/26(30/37)
    Turret
    Number of tools
    10(12)
    10(12)
    12
    12
    Turning tool size mm 32x32
    32x32
    32x32
    32x32
    Boring tool size mm 50
    50
    50
    50
    Travel
    X axis travel mm 360
    360
    360
    360
    Z axis travel
    mm 820
    2100
    820
    2100
