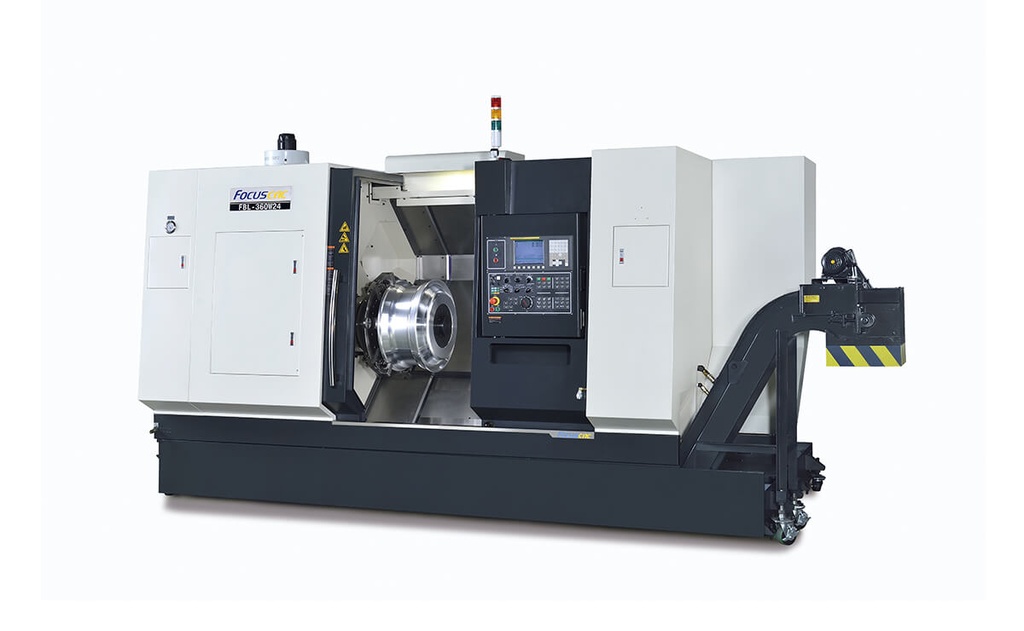

FBL-360 W 22/ 24
Aluminum Wheel CNC Lathe
The motor configuration is specialized in processing 22~24” aluminum wheels. It maintains the speed consistency well when the workpiece texture is uneven to ensure smooth and even processing surface.
Equipped with powerful 10 tool-stations hydraulic turret for heavy cutting. The high- rigidity structure design satisfies strict cutting requirement. Optional 12 tool-stations is available.
The spindle runout is within 0.003mm, the special design multi-layer labyrinth ring makes spindle waterproof.
| Specifications |
FBL-360W22 |
FBL-360W24 |
|
| Capability
|
|||
| Swing over bed | mm | 800 |
840 |
| Max. cutting diameter | mm | 630 |
680 |
| Max. cutting length | mm | 820 |
820 |
| Wheel size
|
inch |
22 |
24(26) |
| Spindle | |||
| Spindel speed | rpm | 2500 | 2500 |
| Spindle nose |
ASA |
A2-8 |
A2-8 |
| Chuck size | inch | - | - |
| Spindle motor | kW |
30/37 |
37/45 |
| Turret | |||
| Number of tools |
|
12 | 12 |
| Turning tool size | mm | 32x32 |
32x32 |
| Boring tool size | mm | 50 |
50 |
| Travel | |||
| X axis travel | mm | 345 |
360 |
|
Z axis travel
|
mm | 820 |
820 |
